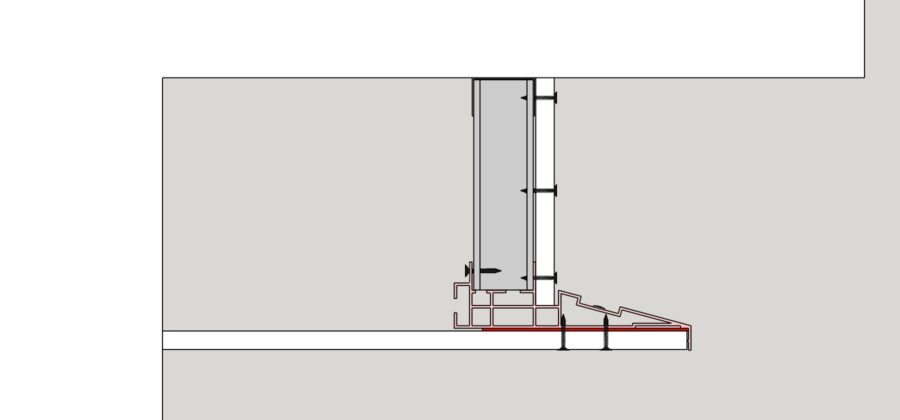

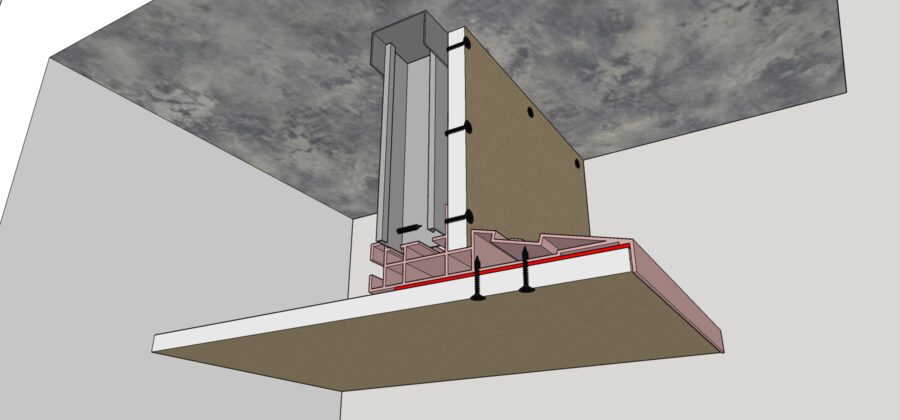

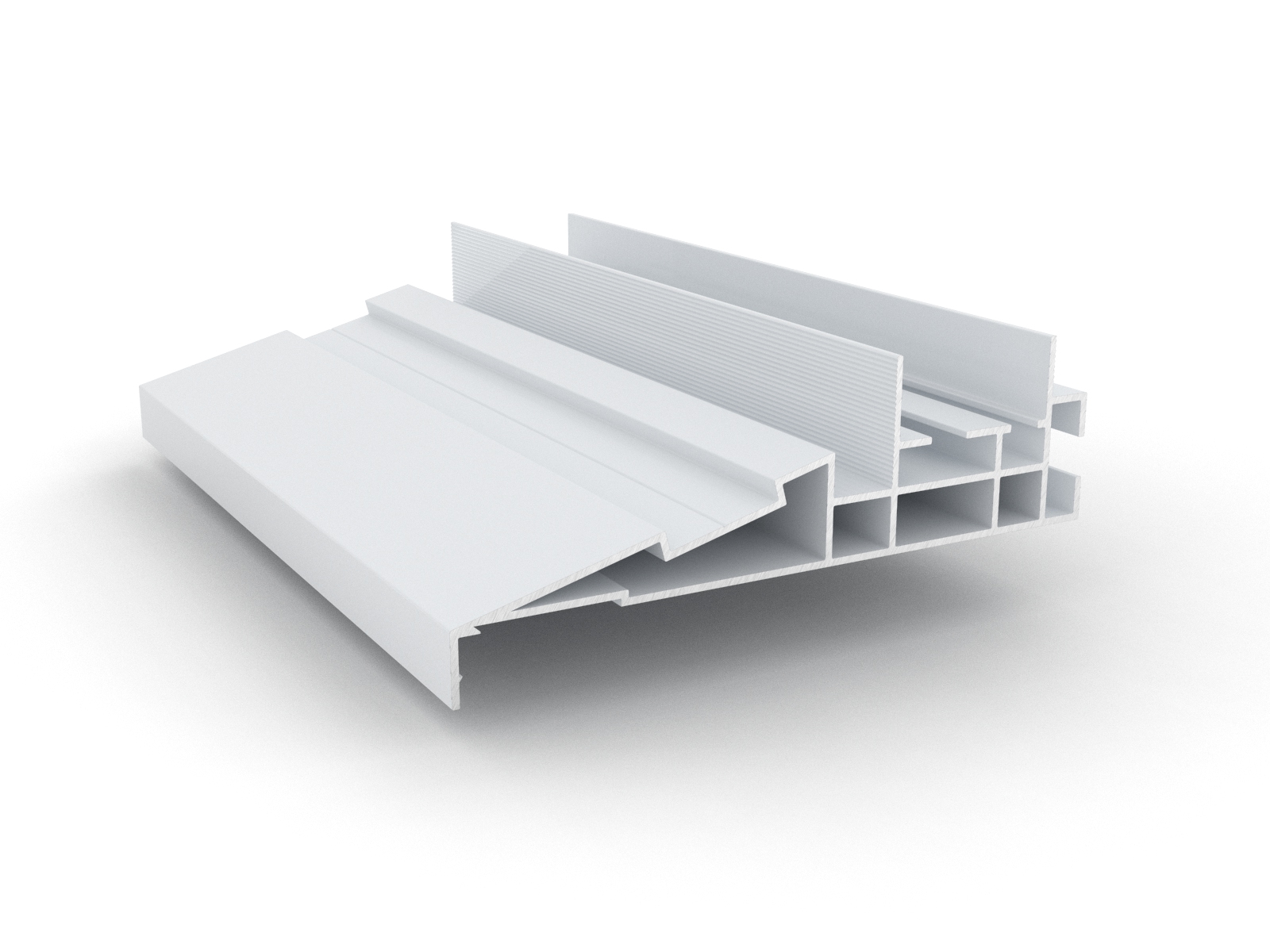

AL 25 white profile is multi functional cornice system, which can be used with stretch ceiling or gypsum ceiling. LED stripes can be placed directly on the profile in 15 degrees angle from the horizontal line, diffuses its light on the ceiling. Side of the cornice is only 17mm which will stay visible. The profile is 167,1mm wide and is available in 2,5m and 5m lengths. AL25 profile minimum recommended fastening is after every 60cm with size 42mm gypsum frames by using screws, does need extra reinforcement with diagonals after every 100cm. When used with other gypsum frames the minimum recommended fastening is after every 40cm and diagonals after every 80cm. It is also possible to add gypsum on top of the profile, to prevent the light accessing backside of the ceiling and to finish the side of the cornice. AL25 profile can be used with EASY ACCESS system (EXPO harpoon) to provide access behind the stretch ceiling. Used also with MINI harpoon. When used with gypsum board, then the gypsum board should be 12mm or 12,5mm thick, then you can hide screws with gypsum putty and add paint coating on the gypsum surface. The profile can also be attached straight to the basic ceiling. Easy corner fixing with double LC01 corners.

Dimensions –167×62 mm, Length in stock 2.5- 5 m, color white, RAL 9003 matt, Price in Euro | per 1 rm.

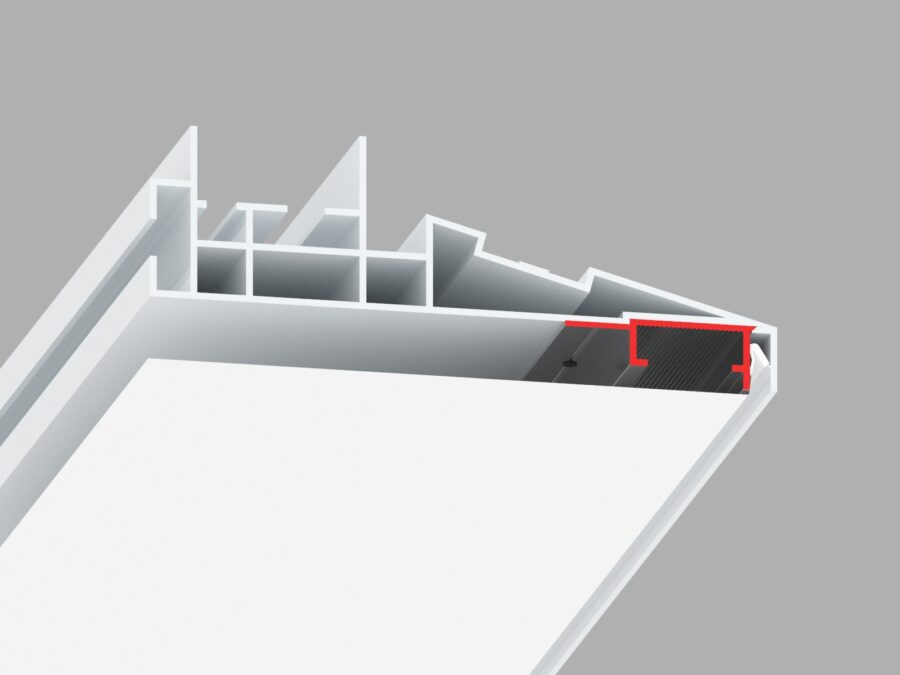

NB!  Used with: additional profile AL 25 Lock and AL 25 Light+Vec 4, profile connectors LC 07, corner connectors LC 01 and LC 13, MINI harpoon, external fastening – Vecta Support System
